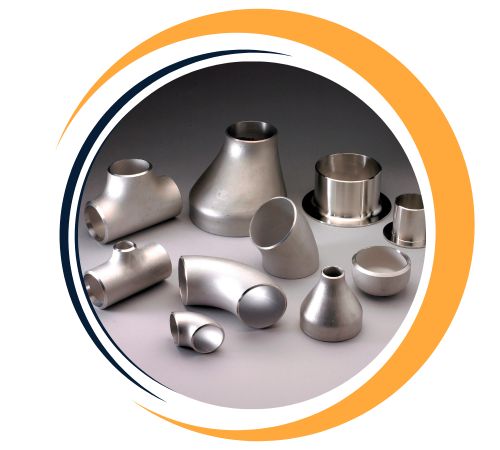

Zain Fittings is a well-respected manufacturer and supplier of Super Duplex Steel UNS S32760 Forged Fittings, proudly based in Surabaya, Indonesia. The company has built a solid reputation for providing top-notch forged fittings that adhere to international standards for strength, corrosion resistance, and durability. Super Duplex S32760 is celebrated for its remarkable blend of high mechanical strength and its ability to resist pitting, crevice, and stress corrosion cracking, especially in chloride-rich environments. Zain Fittings boasts an extensive selection of forged fittings, including elbows, tees, couplings, unions, and reducers, making them perfect for demanding sectors like oil and gas, petrochemicals, desalination, and marine engineering.
Specifications : ASTM A182 / ASME SA182
Size: 1/2″NB TO 4″ NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.

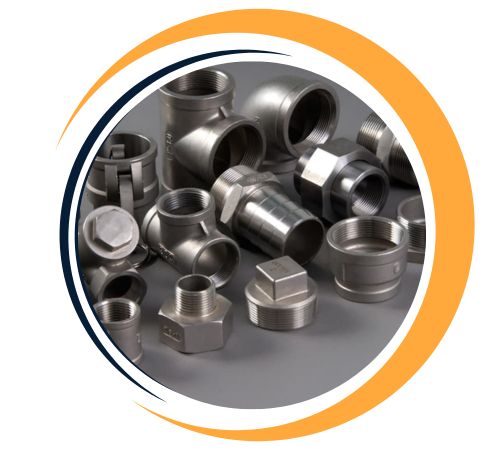

Type: Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings.
These Super Duplex Steel UNS S32760 Forged Fittings are composed of about 25% chromium, 7% nickel, 3.6% molybdenum, and 0.7% tungsten, with added copper and nitrogen to boost corrosion resistance. The alloy features a dual-phase microstructure of austenite and ferrite, which grants it exceptional strength and toughness. With a minimum tensile strength of 750 MPa, a yield strength around 550 MPa, and an elongation of 25%, these fittings also maintain impressive impact strength even in sub-zero temperatures, ensuring reliability in extreme pressure and corrosive conditions.
| UNS | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| S32760 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32760 | 2760 | 550 | 795 | 15 | 310 | 32* |
Zain Fittings is a leading supplier of Super Duplex Steel UNS S32760 Fittings in Jakarta, Indonesia. We offer an extensive range of Super Duplex Steel UNS S32760 Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | Super Duplex S2760 |
| UNS | S32760 |
| WERKSTOFF NR. | 1.4410 |
Choose Super Duplex Steel UNS S32760 Forged Fittings from Zain Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32760 forged fittings offer several advantages, including exceptional corrosion resistance to chloride-induced stress corrosion cracking, pitting, and crevice corrosion. Their high tensile strength and excellent toughness make them ideal for use in harsh environments, such as offshore, marine, and chemical industries. These fittings are also highly resistant to erosion, ensuring durability and extended service life. Their ability to perform reliably in extreme temperatures and pressures makes them a preferred choice for critical applications, providing long-term performance and cost-efficiency in demanding industries.
Yes, custom sizes for Super Duplex Steel UNS S32760 Forged Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32760 Forged Fittings are extensively utilized in industries that require outstanding corrosion and stress resistance under high-pressure scenarios. They are particularly well-suited for applications in offshore oil drilling, subsea pipelines, heat exchangers, desalination plants, chemical processing equipment, and power generation systems. Their capability to endure harsh marine and chloride environments makes them ideal for seawater piping systems and pressure vessels. Additionally, these fittings find use in the paper and pulp, food processing, and wastewater treatment industries, where high mechanical strength, durability, and corrosion resistance are essential for long-lasting performance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
