Zain Fittings has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel WP22 Buttweld Fittings in Surabaya, Indonesia. We proudly serve a growing clientele in Jakarta and beyond. Our dedication to precision engineering and adherence to international standards sets us apart. We specialize in crafting durable, high-performance buttweld fittings that cater to both industrial and commercial needs. Designed to endure high-pressure conditions and extreme temperatures, our fittings are perfect for the demanding requirements of the oil & gas, petrochemical, and power generation industries. When it comes to Alloy Steel WP22 solutions in Indonesia, Zain Fittings is your trusted partner.
| Specifications Standard | Astm A234/ ASME SA 234 |
|---|---|
| Alloy Steel Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Alloy Steel Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

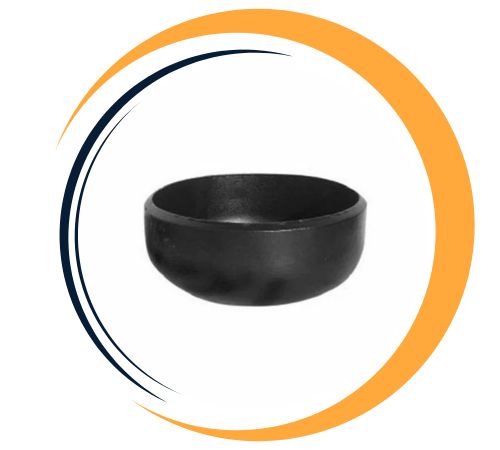

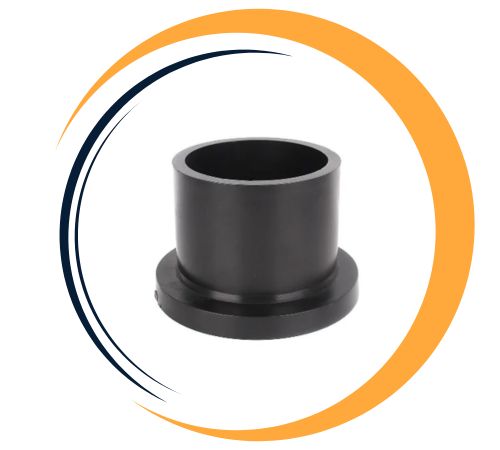

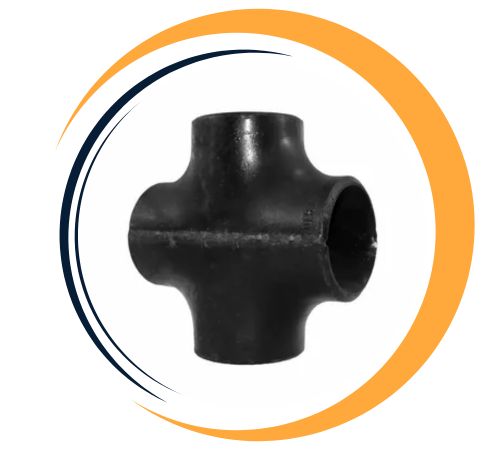

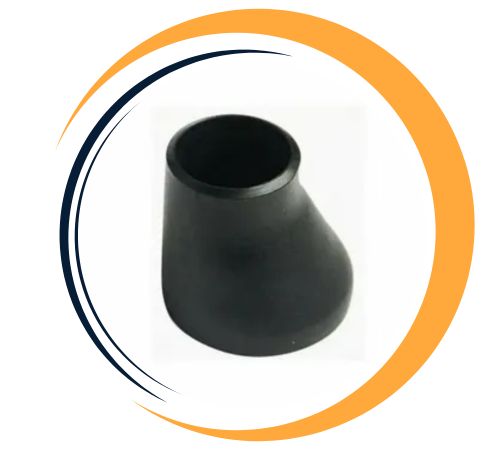

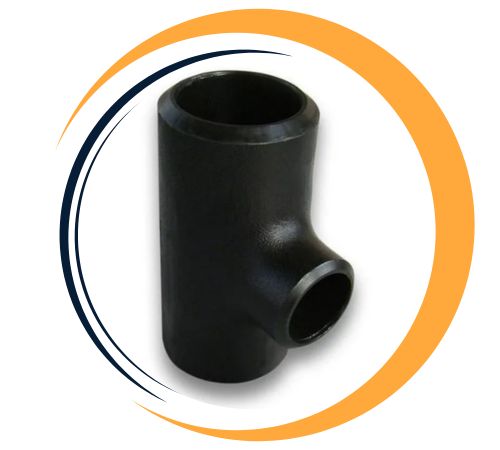

| Alloy Steel Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |

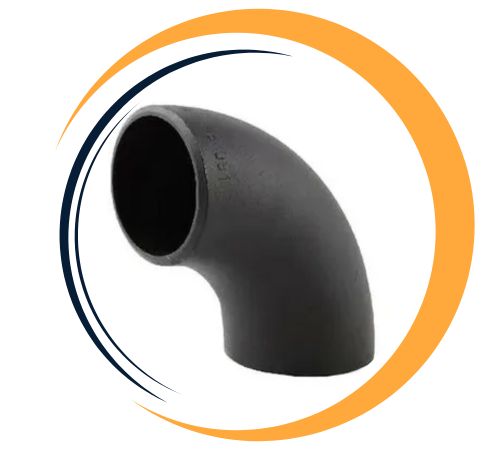

| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Alloy Steel Pipe Fittings are primarily made from carbon steel and alloying elements like chromium, molybdenum, vanadium, and nickel. These additions enhance corrosion resistance, heat resistance, and strength. The composition typically includes 0.3-0.9% carbon, 0.5-5% chromium, and varying amounts of other elements depending on the alloy grade. Mechanical properties include high tensile strength (up to 1000 MPa), yield strength, excellent weldability, and impact resistance at high and low temperatures. These fittings are ideal for high-pressure and high-temperature applications in oil and gas and power generation industries.
|
Grade |
Mn |
C |
P |
Si |
Cr |
S |
Mo |
|---|---|---|---|---|---|---|---|
|
F5 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F1 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F11 |
0.03 to 0.06 |
0.05 to 0.015 |
0.003 |
0.05 to 1.00 |
1.00 to 1.05 |
0.003 |
0.044 to 0.065 |
|
F9 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
F22 |
0.03 to 0.06 |
0.050.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F12 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F91 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
Grade |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|---|---|---|---|
|
F5 |
485 |
275 |
20 % |
|
F1 |
485 |
275 |
20 % |
|
F11 |
415 |
205 |
20 % |
|
F9 |
585 |
380 |
20 % |
|
F22 |
415 |
205 |
20 % |
|
F12 |
485 |
275 |
20 % |
|
F91 |
585 |
380 |
20 % |
Alloy Steel WP22 Buttweld Fittings are primarily made up of Chromium (2.00–2.50%) and Molybdenum (0.87–1.13%), along with carefully balanced levels of carbon, manganese, phosphorus, sulfur, and silicon. These components significantly boost corrosion resistance, heat tolerance, and mechanical strength. Typically, these fittings boast a tensile strength ranging from 415 to 585 MPa, a yield strength of at least 205 MPa, and a minimum elongation of 20%. They also exhibit impressive hardness and resistance to stress rupture, making them well-suited for high-temperature applications in power plants and refineries. At Zain Fittings, we ensure that all our products meet the ASTM A234 WP22 standards.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel Pipe Fittings offer excellent strength, durability, and resistance to corrosion, making them ideal for high-stress applications. Their ability to withstand extreme temperatures and pressure enhances their reliability in oil and gas, chemical processing, and power generation industries. These fittings provide superior wear resistance, ensuring long-term performance even in abrasive environments. Additionally, alloy steel pipe fittings are highly versatile, offering good weldability and machinability, which ensures ease of installation and maintenance. Their cost-effectiveness and long-lasting nature make them a preferred choice for demanding industrial applications.
Yes, custom sizes for Alloy Steel Pipe Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
Alloy Steel WP22 Buttweld Fittings find extensive use in industries that demand high strength and resistance to high temperatures. This includes oil and gas refineries, thermal and nuclear power plants, chemical processing facilities, and the petrochemical sector. Their outstanding weldability and durability make them perfect for connecting pipes in high-pressure settings, effectively transporting steam, gas, and corrosive fluids. In Jakarta, where industrial growth is on the rise, these fittings play a crucial role in supporting safe and efficient piping systems across both infrastructure and energy sectors. Zain Fittings is committed to delivering exceptional performance by providing fittings that meet rigorous quality and international compliance standards, ensuring longevity and reliability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
