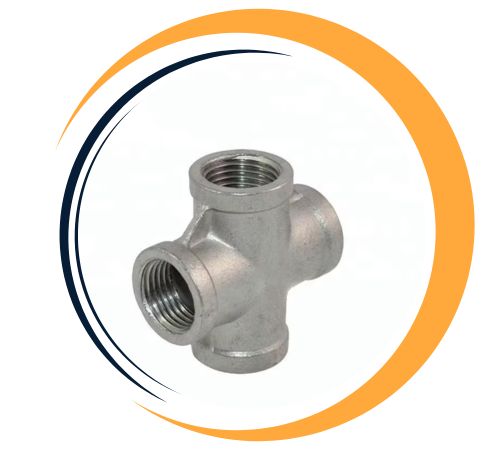

Zain Fittings stands out as a top-notch manufacturer and supplier of Stainless Steel 316 Pipe Fittings, proudly based in Surabaya, Indonesia. The company has built a solid reputation for providing high-quality pipe fittings that excel in corrosion resistance, strength, and durability, even in the toughest environments. Stainless Steel 316 is a special type of austenitic stainless steel that contains molybdenum, giving it an edge over regular stainless steels when it comes to resisting pitting, crevice corrosion, and chemical attacks. Zain Fittings boasts an extensive selection of 316 pipe fittings, including elbows, tees, reducers, caps, and crosses, catering to various industries like chemical processing, petrochemical, marine, pharmaceutical, and food processing, where reliability and longevity are crucial.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
These Stainless Steel 316 Pipe Fittings are made up of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which together provide outstanding resistance to chlorides, acids, and other corrosive substances. The alloy showcases a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35%. It also offers good weldability, high toughness, and remarkable resistance to oxidation and stress corrosion cracking, making it perfect for high-temperature and aggressive service conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | min. | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – | |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
Zain Fittings one of the largest suppliers of Stainless Steel 316 Pipe Fittings in Jakarta, Indonesia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316 Pipe Fittings in the Indonesia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316 Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 Fittings | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Pipe Fittings provide outstanding corrosion resistance, particularly in marine and chloride-rich environments, due to the presence of molybdenum. They are highly durable, offering excellent strength and resistance to pitting, crevice corrosion, and oxidation in aggressive conditions. These fittings maintain mechanical integrity at high and low temperatures, making them suitable for a wide range of applications. With superior weldability and machinability, SS 316 fittings are easy to fabricate and install. Their long-lasting performance makes them ideal for industries like petrochemical, marine, chemical processing, and power generation.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes are available for Stainless Steel 316 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@zainfittings.id.
| Product | Size* | Wall Thickness** | Seamless | Welded | |||||||||||||||||||||

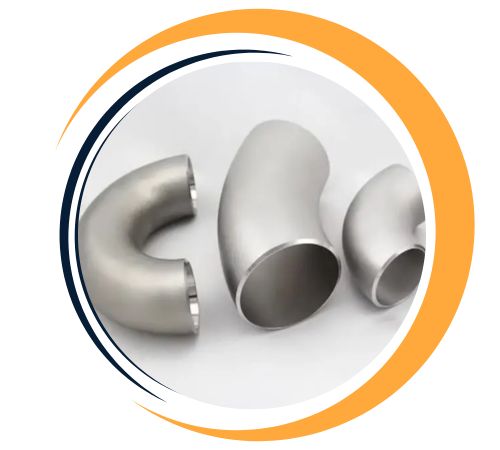

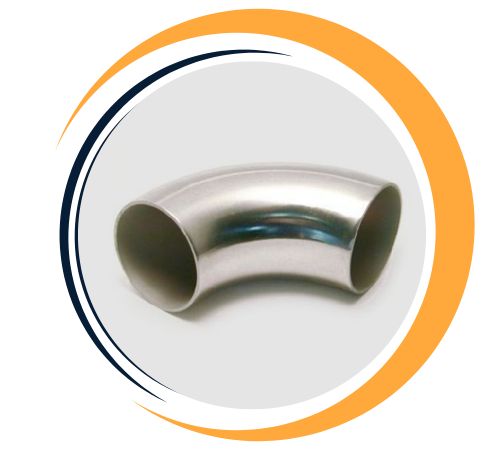

| Elbow | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||

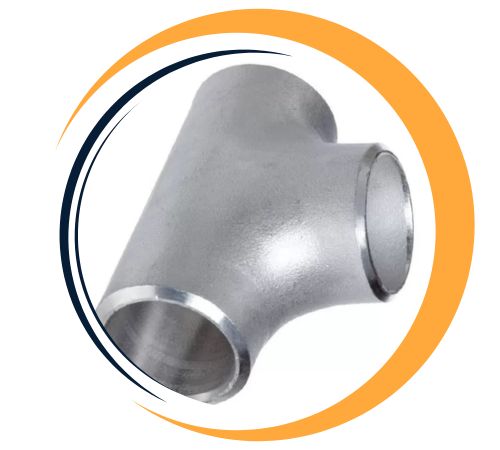

| Tee | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Reducer | 1/2″-24″ | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8″-104″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Cap | 1/2″-80″ | SCH10S~SCH160 | √ | ||||||||||||||||||||||

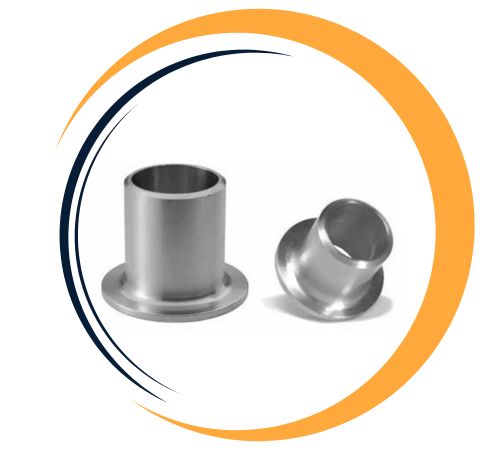

| Lap Joint Stub End | 1/2″-24″ | SCH5S~80S/XS | √ | √ | |||||||||||||||||||||
| 8″-80″ | SCH5S~80S/XS | √ | |||||||||||||||||||||||
You’ll find Stainless Steel 316 Pipe Fittings widely used in industries that demand exceptional corrosion resistance and mechanical reliability. They’re particularly well-suited for chemical and petrochemical plants, seawater and marine piping systems, heat exchangers, and condensers. Their ability to resist intergranular corrosion makes them a great choice for the pharmaceutical, food processing, and pulp and paper sectors. Plus, these fittings are also utilized in power generation, wastewater treatment, and desalination plants, ensuring long-lasting durability, safety, and efficient performance even in harsh and corrosive environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
