Zain Fittings, based in Jakarta, Indonesia, is a leading manufacturer and supplier of premium lateral fittings, designed to meet the demands of various industrial applications. With a commitment to quality and precision, Zain Fittings provides laterals crafted from durable materials to ensure superior performance in fluid and gas distribution systems. Known for their reliability and compatibility, these fittings are suitable for industries like oil and gas, petrochemicals, and water treatment. Trust Zain Fittings for efficient and high-quality lateral solutions.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2” TO 36”
Form: Lateral Tee, Butt weld Tee, Fitting Tee
Laterals are made from high-grade materials such as carbon steel, stainless steel, alloy steel, and duplex steel, ensuring durability and performance in demanding applications. Their composition often includes elements like iron, carbon, chromium, nickel, and molybdenum, which enhance corrosion resistance, tensile strength, and thermal stability. Mechanically, laterals exhibit excellent properties such as high tensile strength, good elongation, and resistance to stress corrosion cracking. They are designed to handle high pressures and temperatures, making them ideal for use in piping systems requiring a reliable flow distribution in various industries.
Zain Fittings is a reputable manufacturer and supplier of top-notch **Lateral Pipe Fittings** located in Jakarta, Indonesia. With a keen emphasis on precision, durability, and adherence to industry standards, Zain Fittings creates laterals that enable smooth directional shifts in piping systems. These fittings are typically utilized to form a 45-degree branch from a pipeline, making them perfect for systems that need to divert flow without sacrificing pressure or performance. Crafted to comply with international standards like ASME B16.9 and ASTM specifications, Zain Fittings caters to a diverse array of industries, including oil and gas, petrochemicals, power generation, water treatment, and marine infrastructure.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Lateral fittings come in various materials such as stainless steel, carbon steel, alloy steel, and specialized alloys like Inconel or Monel, tailored to meet the specific demands of pressure, temperature, and corrosion resistance. These fittings boast exceptional mechanical strength and are designed for leak-proof connections, precise dimensions, and long-lasting service even in tough operating conditions. Zain Fittings produces laterals in both seamless and welded forms, offering a range of wall thicknesses and sizes to accommodate both standard and custom piping setups.
These lateral fittings are commonly found in piping systems where a 45-degree branch connection is essential for improved fluid flow and minimized turbulence. They shine in applications like process piping, high-pressure distribution networks, chemical transport systems, and structural pipelines. Their innovative design helps maintain optimal flow dynamics and simplifies system layouts in tight or intricate spaces. With rigorous quality control, precise machining, and corrosion-resistant materials, laterals from Zain Fittings ensure dependable performance and easy installation.
Yes, custom sizes for Lateral are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.

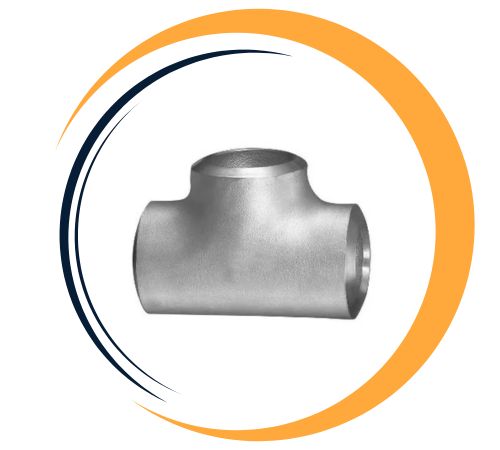

Stainless Steel Lateral Tee : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

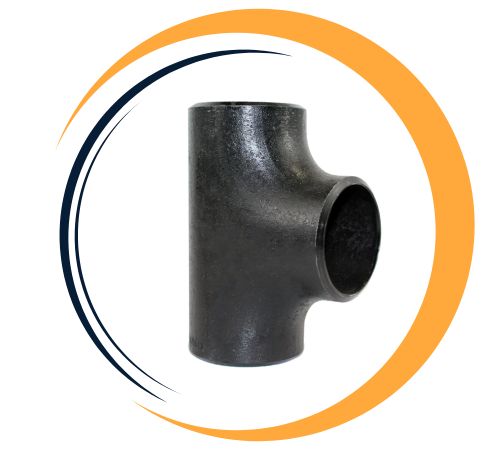

Carbon Steel Lateral Tee : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

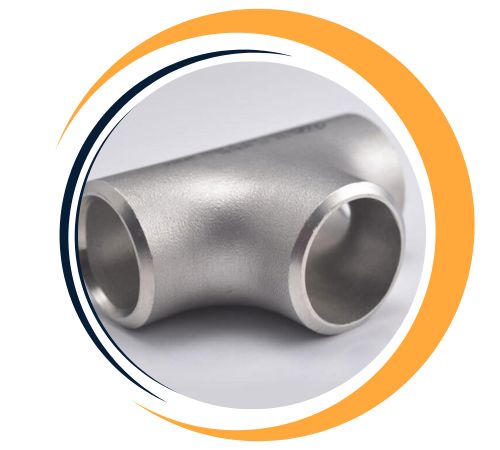

Alloy Steel Lateral Tee : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel Lateral Tee : ASTM A815, ASME SA815 UNS No S31803, S32205

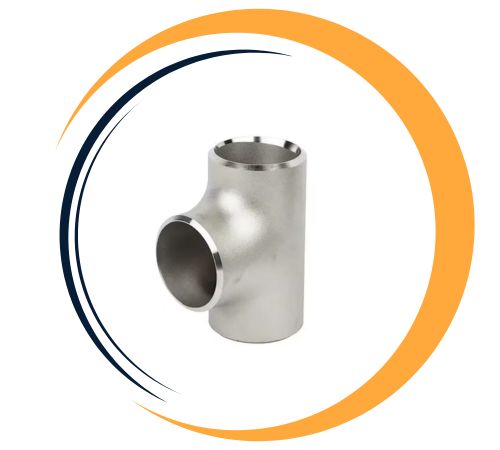

Super Duplex Lateral Tee : ASTM A815, ASME SA815 UNS No S32750, S32950

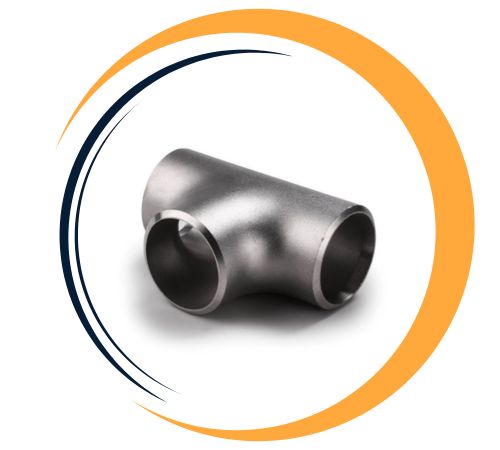

Nickel Alloy Lateral Tee : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Lateral Tee : ASTM A420 WPL3, A420 WPL6
| Nominal PN (MPa) | DN | Thread D | Pipe Specification DH×s | L1 | L2 | L3 (Not less than) | L (Not less than) | R |
| 32.0 | 175 | M240×6 | 245×36 | 120 | 130 | 360 | 1095 | 735 |
| 200 | M265×6 | 273×40 | 130 | 140 | 390 | 1209 | 819 | |
| 225 | M320×6 | 325×50 | 175 | 185 | 525 | 1500 | 975 | |
| 250 | M350×6 | 355.6×55 | 195 | 205 | 580 | 1650 | 1070 | |
| 22.0 | 175 | M215×6 | 219×24 | 100 | 110 | 300 | 957 | 657 |
| 200 | M240×6 | 245×26 | 110 | 120 | 330 | 1065 | 735 | |
| 225 | M265×6 | 273×29 | 115 | 125 | 345 | 1164 | 819 | |
| 250 | M295×6 | 299×32 | 120 | 130 | 360 | 1257 | 897 |
Laterals are essential components in piping systems, designed to facilitate the connection of multiple pipelines at an angle, ensuring smooth fluid or gas distribution. Widely used in industries such as oil and gas, petrochemicals, water treatment, and power generation, they efficiently manage flow in complex systems. Their durability and resistance to corrosion make them ideal for harsh environments, including offshore and chemical processing facilities. Laterals are also used in wastewater management systems and construction projects, ensuring reliable performance and long-term operational efficiency.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
