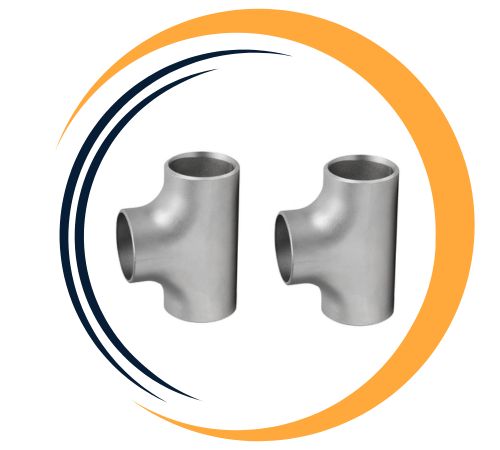

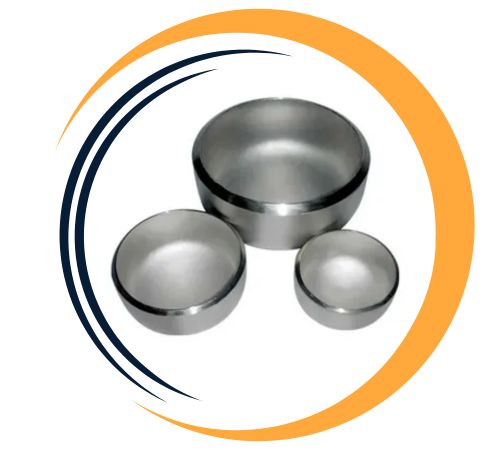

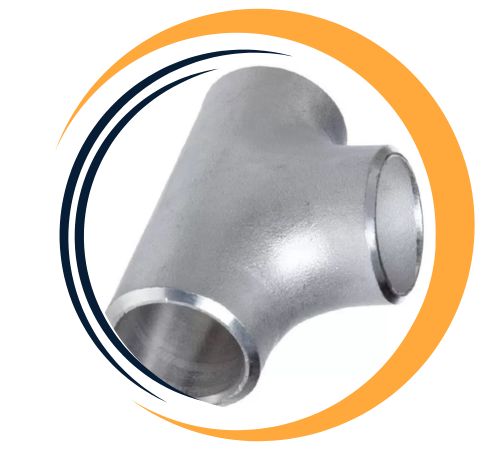

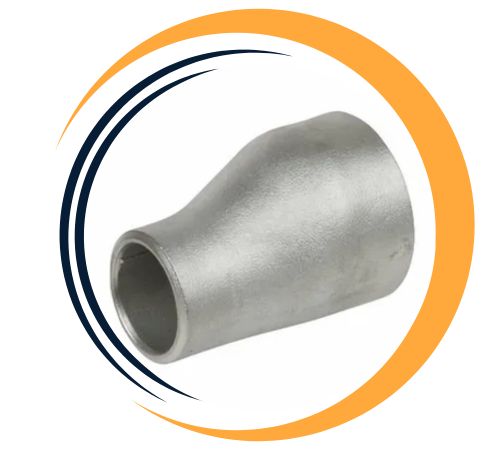

Zain Fittings is a well-respected manufacturer and supplier of Stainless Steel 317L Pipe Fittings, proudly based in Surabaya, Indonesia. The company has built a solid reputation for crafting top-notch pipe fittings that excel in corrosion resistance, durability, and performance, even in the toughest environments. Stainless Steel 317L is a low-carbon, molybdenum-rich austenitic stainless steel, known for its exceptional ability to resist chemical attacks and pitting, far surpassing that of standard stainless steels. Zain Fittings offers a diverse selection of Stainless Steel 317L Pipe Fittings, including elbows, tees, reducers, crosses, and caps, catering to various industries such as chemical processing, marine, paper and pulp, and pharmaceutical manufacturing.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
These pipe fittings are made up of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, with a low carbon content (≤0.03%) that boosts their resistance to sensitization during welding. This unique composition guarantees outstanding corrosion resistance, especially against sulfurous, acetic, and citric acids. The alloy boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 35%. It also provides excellent creep strength, good weldability, and remarkable oxidation resistance, even at high temperatures, ensuring reliable performance in demanding service conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Zain Fittings one of the largest suppliers of Stainless Steel 317L Pipe Fittings in Jakarta, Indonesia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 317L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 317L Pipe Fittings in the Indonesia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 317L Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Stainless steel 317L pipe fittings offer many advantages, including excellent corrosion resistance, especially in high chloride environments, making them ideal for chemical, marine and petrochemical applications Their low carbon offers weldability is increased and the risk of intergranular corrosion is reduced. They exhibit high tensile strength, excellent ductility, and stress corrosion crack resistance, providing long service life. Resistance to pitting and crevice corrosion provides additional stability in harsh environments. Additionally, the 317L fitting is resistant to high temperatures, providing reliable performance in both hot and cold extremes. These characteristics ensure high reliability and durability.
Yes, custom sizes are available for Stainless Steel 317L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@zainfittings.id.

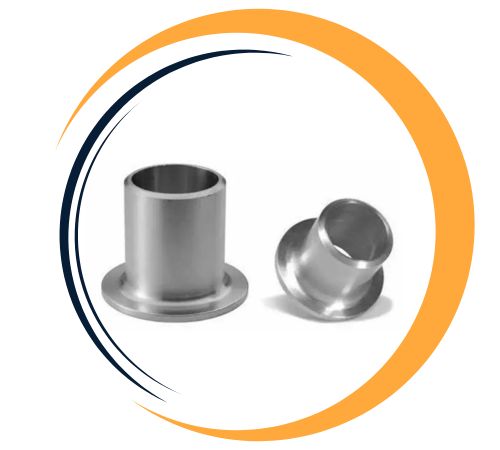

| Nominal Pipe Size | Straight Crosses | Straight Tees | Caps | Stub Ends | ||
|---|---|---|---|---|---|---|
| (inches) | Center to End (inches) | Center to End (inches) | Length (inches) | Long Length (inches) | Lap Diameter (inches) | Short Length (inches) |
| 1/2 | – | 1 | 1 | 3 | 1 3/8 | 2 |
| 1 1/2 | 2 1/4 | 2 1/4 | 1 1/2 | 4 | 2 7/8 | |
| 1 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | ||
| 2 1/2 | 3 | 3 | 1 1/2 | 6 | 4 1/8 | 2 1/2 |
| 3 | 3 3/8 | 3 3/8 | 2 | 5 | ||
| 2 | 2 1/2 | 2 1/2 | 1 1/2 | 3 5/8 | ||
| 4 | 4 1/8 | 4 1/8 | 2 1/2 | 6 3/16 | 3 | |
| 5 | 4 7/8 | 4 7/8 | 3 | 8 | 7 5/16 | |
| 8 | 7 | 7 | 4 | 10 5/8 | 4 | |
| 10 | 8 1/2 | 8 1/2 | 5 | 10 | 12 3/4 | 5 |
| 12 | 10 | 10 | 6 | 15 | 6 | |

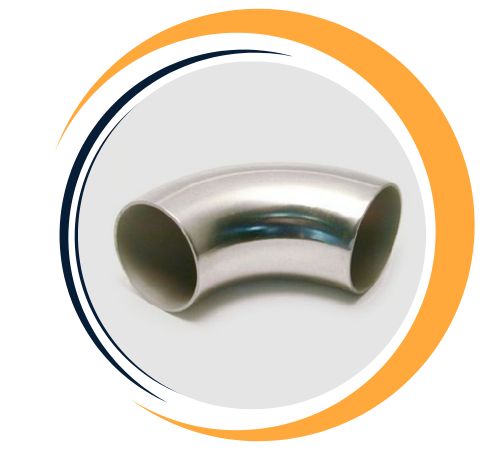

| NPS (Normal Pipe Size) | OD(Outside Daimeter) | 180 Deg Return Elbow | 90 Deg Elbow Fittings | 45 Deg Elbow Fittings | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Long Radius Elbow | Short Radius | Long Radius Elbow | ||||
| mm | inch | Back to face (Inch) | Center to Center (Inch) | Center to Face (Inch) | Center to Face (Inch) | Center to Face (Inch) | Radius (Inch) | |
| 12 | 323.9 | 12.750 | 24 3/8 | 36 | 18 | 12 | 7 1/2 | 18 |
| 3 | 88.9 | 3.500 | 6 1/4 | 9 | 4 1/2 | 3 | 2 | 6 |
| 1/2 | 21.3 | 0.840 | 1 7/8 | 2 | 1 1/2 | – | 5/8 | |
| 10 | 273.1 | 10.750 | 20 3/8 | 30 | 15 | 10 | 6 1/4 | 15 |
| 1 1/4 | 42.2 | 1.660 | 2 3/4 | 3 3/4 | 1 7/8 | 1 1/4 | 1 | |
| 1 | 33.4 | 1.315 | 2 3/16 | 3 | 1 1/2 | 1 | 7/8 | |
| 8 | 219.1 | 8.625 | 16 5/16 | 24 | 12 | 8 | 5 | 12 |
| 1 1/2 | 48.3 | 1.900 | 3 1/4 | 4 1/2 | 2 1/4 | 1 1/2 | 1 1/8 | 3 |
| 6 | 168.3 | 6.625 | 12 5/16 | 18 | 9 | 6 | 3 3/4 | 12 |
| 2 1/2 | 73.0 | 2.875 | 5 3/16 | 7 1/2 | 3 3/4 | 2 1/2 | 1 3/4 | 5 |
| 4 | 114.3 | 4.500 | 8 1/4 | 12 | 6 | 4 | 2 1/2 | 8 |
| 2 | 60.3 | 2.375 | 4 3/16 | 6 | 3 | 2 | 1 3/8 | 4 |
| 5 | 141.3 | 5.563 | 10 5/16 | 15 | 7 1/2 | 5 | 3 1/8 | 10 |
| 3 1/2 | 101.6 | 4.000 | 7 1/4 | 10 1/2 | 5 1/4 | 3 1/2 | 2 1/4 | 7 |
Stainless Steel 317L Pipe Fittings are extensively utilized in industries where high corrosion resistance and durability are non-negotiable. They are perfect for chemical and petrochemical plants, condensers, heat exchangers, and marine equipment that face acidic and saline environments. Their exceptional resistance to intergranular corrosion makes them a great choice for food processing, paper and pulp, and textile industries. Moreover, these fittings find their place in pharmaceutical equipment, power generation, and wastewater treatment systems, where strength, hygiene, and longevity are vital for safe and efficient operation in corrosive settings.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
