Zain Fittings is a reputable manufacturer and supplier located in Surabaya, Indonesia, focusing on top-notch Stainless Steel 304L Pipe Fittings. These fittings are crafted for exceptional corrosion resistance, strength, and durability, making them perfect for a variety of industrial uses. At Zain Fittings, precision manufacturing and adherence to international standards are priorities, ensuring that customers receive reliable and long-lasting products. Commonly found in the chemical, petrochemical, food processing, pharmaceutical, and marine sectors, Stainless Steel 304L Pipe Fittings guarantee secure, leak-proof connections. Their low carbon content boosts resistance to sensitization, which is why they’re ideal for welding and high-performance piping systems in critical industrial settings.
| Specifications | : | ASTM A182 ASME SA 182 |
| Tube Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
These fittings are primarily made up of 18–20% chromium and 8–12% nickel, with a maximum carbon content of 0.03% to avoid sensitization and intergranular corrosion. This unique composition offers outstanding resistance to oxidation, scaling, and general corrosion across various environments. On the mechanical side, these fittings boast a tensile strength of about 485–620 MPa, yield strength of 170–275 MPa, and an elongation of 40–50%. They are known for their excellent weldability, toughness, and dimensional stability, ensuring dependable performance even under moderate temperatures and corrosive conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

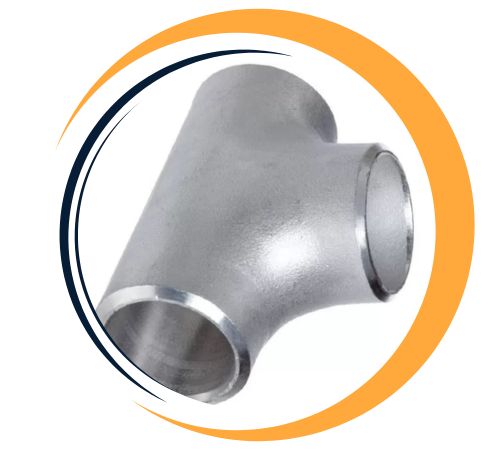

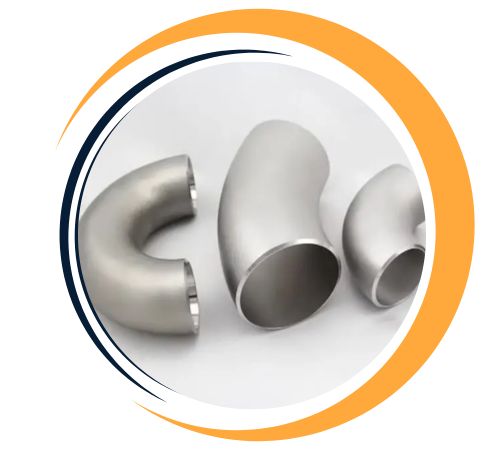

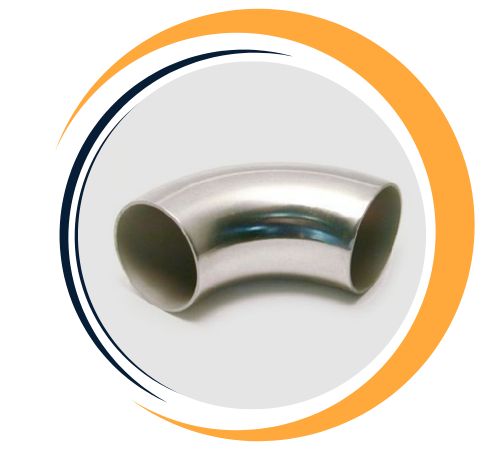

Zain Fittings one of the largest suppliers of Stainless Steel 304L Pipe Fittings in Jakarta, Indonesia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 304L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 304L Pipe Fittings in the Indonesia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304L | S30403 | 304S11 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304L |
Stainless steel 304L pipe fittings provide excellent corrosion resistance, especially in sensitive corrosion and oxidizing environments. Their low carbon content reduces carbide precipitation during welding, resulting in better weldability and reduced risk of intergranular corrosion. These fittings are durable, versatile and maintain high strength at even at elevated temperatures. It is easy to make and wash, making it suitable for hygiene-critical applications such as food processing and pharmaceuticals. Due to their excellent durability they perform well in both cryogenic and high temperature environments making them a reliable choice for a variety of industrial and commercial applications.
Yes, custom sizes are available for Stainless Steel 304L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@zainfittings.id.
Stainless Steel 304L Pipe Fittings are widely utilized in industries that demand high corrosion resistance and weldability. They’re perfect for chemical processing equipment, pipelines, storage tanks, and heat exchangers. In the food and pharmaceutical sectors, these fittings ensure hygienic, safe, and durable connections. They’re also used in marine applications, water treatment systems, and power generation facilities. The blend of corrosion resistance, mechanical reliability, and low carbon content makes Stainless Steel 304L Pipe Fittings the go-to choice for high-performance and critical piping applications in challenging industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
