Zain Fittings, located in Surabaya, Indonesia, has earned a solid reputation as a reliable manufacturer and supplier of **Alloy Steel WP11 Pipe Fittings** for clients in Midland, UK. The company specializes in precision-engineered fittings that are celebrated for their durability, strength, and exceptional resistance to corrosion and oxidation. Thanks to cutting-edge production technology and rigorous quality control measures, Zain Fittings guarantees that each product adheres to international standards. Their Alloy Steel WP11 Pipe Fittings are widely utilized in industries that require resilience against high temperatures and pressures, ensuring dependable performance and a long lifespan across various industrial systems and engineering applications.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

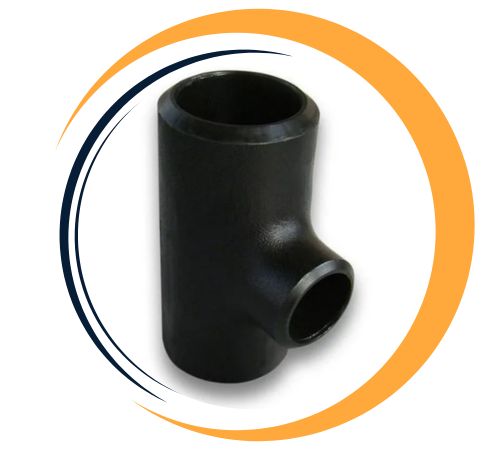

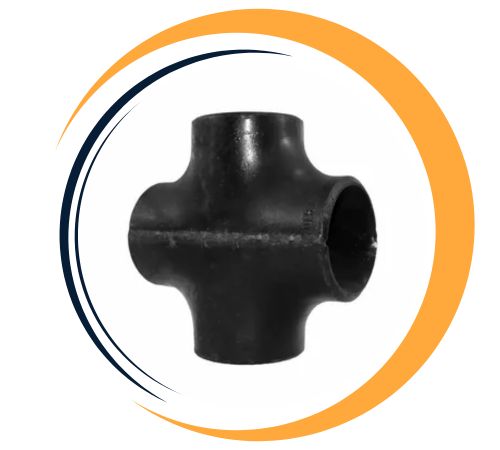

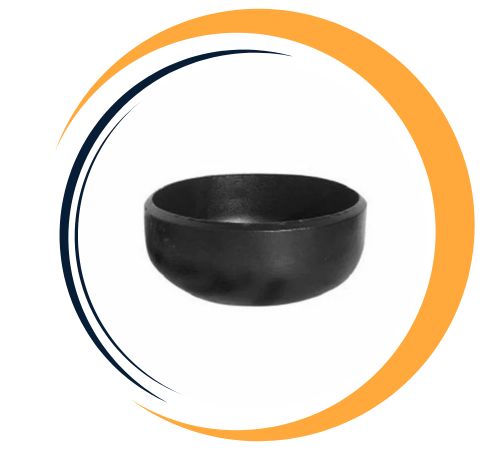

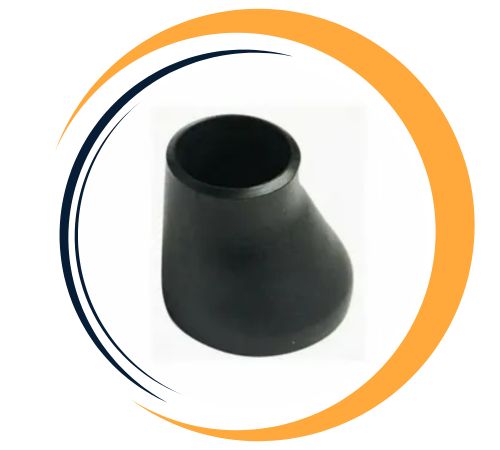

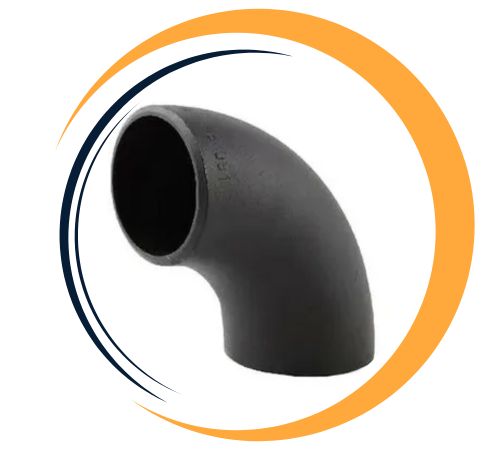

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The **Alloy Steel WP11 Pipe Fittings** are primarily composed of chromium (1–1.5%), molybdenum (0.44–0.65%), carbon (up to 0.15%), along with manganese, silicon, and iron as the base element. This specific composition boosts hardness, tensile strength, and resistance to heat and wear. These fittings showcase impressive mechanical properties, including high tensile strength (415–585 MPa), yield strength (205 MPa), and good elongation (20%). They remain stable under thermal stress, ensuring outstanding performance in high-temperature and high-pressure applications.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 1-1.5 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415 – 585 | ≥205 | ≥20 |
**Alloy Steel WP11 Pipe Fittings** find extensive use in industries that require exceptional strength and corrosion resistance in extreme conditions. They are perfect for applications in power generation plants, heat exchangers, petrochemical processing, refineries, boilers, and pressure vessels. Additionally, these fittings are employed in oil and gas pipelines, chemical industries, and high-temperature steam lines. Their capability to endure thermal fatigue, oxidation, and scaling makes them incredibly reliable for critical operations, ensuring safe and efficient fluid handling in demanding industrial settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP11 Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP11 Pipe Fittings offer excellent strength, durability, and resistance to high temperatures, making them ideal for use in demanding environments like power plants and high-pressure systems. These fittings exhibit superior resistance to oxidation, corrosion, and wear, ensuring long-lasting performance. The material’s ability to withstand thermal fatigue and stress under extreme conditions enhances its reliability. Alloy Steel WP11 Pipe Fittings are highly versatile, offering easy weldability and formability for various applications, ensuring efficient and safe operation in critical industrial settings. They are cost-effective due to their longevity and minimal maintenance needs.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP11 Pipe Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
Alloy Steel WP11 Pipe Fittings are widely used in high-temperature applications due to their excellent heat resistance and strength. They are commonly found in power generation, oil and gas, petrochemical, and chemical processing industries. These fittings are ideal for systems involving steam, water, and other high-pressure fluids, as they can withstand extreme conditions without compromising structural integrity. WP11 fittings are crucial in pressure vessel construction, boiler systems, and pipelines that operate at elevated temperatures, ensuring reliable performance and long-term durability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
