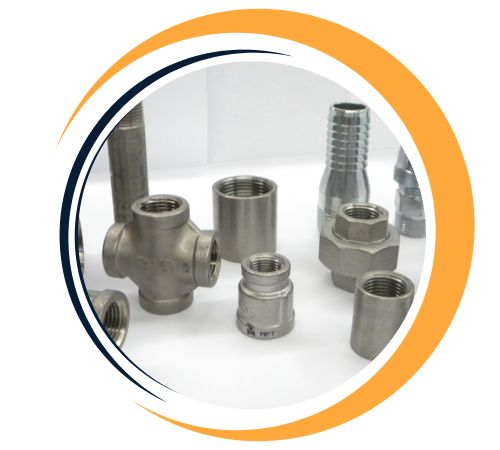

Zain Fittings is a reputable manufacturer and supplier of Alloy Steel F11 Forged Fittings, proudly based in Surabaya, Indonesia. The company has built a solid reputation for crafting high-quality forged fittings that excel in strength, durability, and resistance to extreme temperatures and pressures. Alloy Steel F11, which is a chromium-molybdenum (Cr-Mo) steel, is a popular choice in the power generation, petrochemical, and oil and gas sectors, thanks to its impressive mechanical properties and toughness. Zain Fittings provides a wide array of F11 forged fittings, including elbows, tees, reducers, couplings, and caps, all designed to meet international standards and deliver reliable performance in challenging industrial settings.
| Specification : | ASTM A182 F11 Forged Fittings |
|---|---|
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
These Alloy Steel F11 Forged Fittings typically contain about 1% chromium and 0.5% molybdenum, along with carbon, manganese, and other alloying elements that boost their tensile strength, hardness, and high-temperature capabilities. They boast a tensile strength ranging from 540 to 690 MPa, a yield strength of 415 to 550 MPa, and an elongation of 20 to 25%. The forging process guarantees a consistent microstructure, enhanced mechanical properties, and resistance to defects, ensuring excellent fatigue and creep resistance even under high-pressure and high-temperature conditions.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F11 Forged Fittings | 0.05 – 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 1 – 1.5 | 0.044 – 0.65 |
| Gr | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F11 Forged Fittings | 205 | 415 | 20 |
Zain Fittings is a leading supplier of Alloy Steel F11 Forged Fittings in Jakarta, Indonesia. We offer an extensive range of Alloy Steel F11 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F11 Forged Fittings from Zain Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F11 Forged Fittings are primarily composed of carbon, manganese, phosphorus, sulfur, and silicon, with chromium (2.25-3%) and molybdenum (0.9-1.1%) as key alloying elements. Chromium enhances oxidation and corrosion resistance, while molybdenum improves strength and heat resistance. The mechanical properties include a tensile strength of approximately 585 MPa, yield strength of 415 MPa, and an elongation of around 20%. These fittings also exhibit good impact toughness, making them ideal for high-pressure, high-temperature applications. Alloy Steel F11 Forged Fittings offer long-lasting performance in demanding industrial environments.
Yes, custom sizes for Alloy Steel F11 Forged Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F11 Forged Fittings | K11597 | 1.7338 | 1-1/4Cr-1/2Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F11 Forged Fittings are extensively utilized in industries that demand reliable and durable piping solutions in extreme environments. They are perfect for applications such as boilers, pressure vessels, heat exchangers, petrochemical plants, and oil and gas pipelines. Their remarkable strength and toughness make them ideal for critical process lines and high-temperature services. Additionally, these fittings find their place in refineries, steam systems, and various other industrial applications where long-term reliability, safety, and efficient operation are paramount.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
